HYRUBBERS is a leading China manufacturer of hydraulic hoses. We have a complete chain to custom SAE 100 R8 hose.
Size: 3/16"–1/2”
Working pressure: 350bar–245bar
Lenght: 50-100m
Weight: 0.115–0.283kg/m
SAE 100 R8 THERMOPLASTIC HOSE
APPLICATION: Hydraulic hose SAE 100R8 can be used for paint machine
INNER TUBE: Oil resistant thermoplastic elastomer
REINFORCEMENT: Two layer fiber braided
SIZE: 3/16”–1/2”
WORKING PRESSURE: 350bar–245bar
LENGTH: 50-100m
WEIGHT: 0.115–0.283kg/m
COVER: Thermoplastic elastomer with high ozone, weather and abrasion resistance
WORKING TEMPERATURE: From-40℃ (-104 ℉ ) to +100℃(+212 ℉)
SPECIFICATION:
Size | I.D | O.D | W.P | B.P | Min B.R | Weight | Length | ||||
mm | Inch | mm | mm | Max | Mpa | psi | Mpa | Psi | mm | kg/m | m |
5 | 3/16″ | 4.6 | 5.4 | 14.6 | 35 | 5075 | 140 | 20300 | 38 | 0.115 | 20~100 |
6.3 | 1/4″ | 6.2 | 7.0 | 16.8 | 35 | 5075 | 140 | 20300 | 51 | 0.176 | 20~100 |
10 | 3/8″ | 9.3 | 10.3 | 20.3 | 28 | 4060 | 112 | 16240 | 64 | 0.220 | 20~100 |
12.5 | 1/2″ | 12.3 | 13.5 | 24.6 | 24.5 | 3550 | 98 | 14210 | 102 | 0.283 | 20~100 |
HOSE PHOTO:

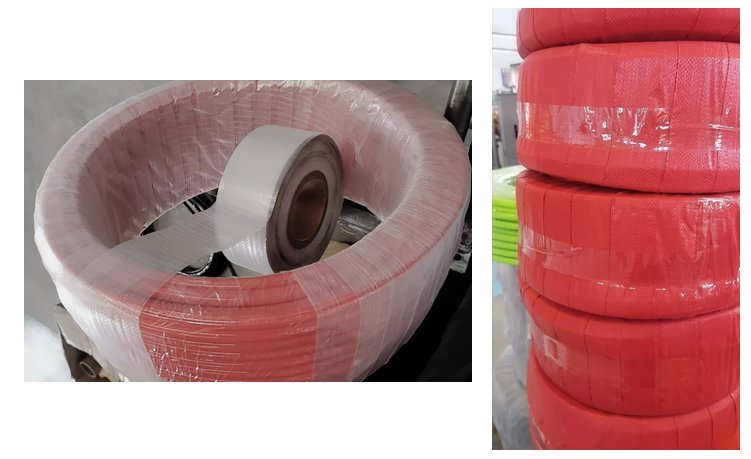

PACKING:
WHY CHOOSE US?
●17+ years experience in rubber hydraulic hose and pvc hose industry.
●Main products: hydraulic hose, welding hose, oil hose, suction hose, etc.
●Located in Qingdao,China, closed with the seaport
●32 steel braiding machine, 2 sprial machine for 4 wire hoses, and 2 cotton braiding machine
●Outstanding R&D engineers team.
●OEM available.
●Consistent and well trained team.
●Experienced sales team for different markets.
●ISO9001 approved production process.
MARKET:
Based on products and services,Continuously optimize and improve enterprise management and technology.Committed to eliminating errors or defects in hose production process.
To create more value-added products for our partners Customer groups that have served already involve many countries and regions in the world.
