Hydraulic hoses offered by China manufacturer HYRUBBERS. Buy steam hose from us with low price and high quality.
Size: 3/8"–2”
Working pressure: 10bar/20bar
Lenght: 20m/40m/50m/100m
Weight: 0.39–1.875kg/m
STEAM HOSE
CONSTRUCTION:
Tube: Synthetic rubber EPDM
Reinforcement: one high tensile wire braiding
Cover: Red or blue, pin pricked smooth (wrapped finish), EPDM rubber
APPLICATION: The steam hose is used for the saturated steam in chemical industry, petroleum industry, shipbuilding industry
FEATURES:
Excellent resistance to high temperature
Weathering and ozoen resistance
High abrasion resistant cover
Anti aging, long service life
High-strength steel wire steel braided reinforcement provides ease of use while maintaining flexibility.
EPDM or oil-resistant steam hoses withstand dragging, scuffing and other abuse found in many applications
WORKING TEMPERATURE: -40℃ to +155℃
SPECIFICATION：
W/B | Size | O.D | WP | B.P | Min B.R | Length | |||
mm | inch | mm | Mpa | Psi | Mpa | Psi | mm | m | |
1W | 10 | 3/8″ | 21.5 | 1 | 150 | 4 | 570 | 130 | 20/ 50 |
13 | 1/2″ | 24.5 | 1 | 150 | 4 | 570 | 180 | 20/ 50 | |
16 | 5/8″ | 27.5 | 1 | 150 | 4 | 570 | 205 | 20/ 50 | |
19 | 3/4″ | 30.5 | 1 | 150 | 4 | 570 | 240 | 20/ 50 | |
22 | 7/8″ | 33.5 | 1 | 150 | 4 | 570 | 280 | 20/ 50 | |
25 | 1″ | 37.0 | 1 | 150 | 4 | 570 | 300 | 20/ 50 | |
32 | 1.1/4″ | 44.0 | 1 | 150 | 4 | 570 | 420 | 20/ 40 | |
38 | 1.1/2″ | 50.5 | 1 | 150 | 4 | 570 | 500 | 20/ 40 | |
45 | 1.3/4″ | 57.5 | 1 | 150 | 4 | 570 | 500 | 20/ 40 | |
51 | 2″ | 63.5 | 1 | 150 | 4 | 570 | 630 | 20/ 40 | |
64 | 2.1/2″ | 77.5 | 1 | 150 | 4 | 570 | 700 | 20/ 40 | |
2W | 10 | 3/8″ | 23.0 | 2 | 300 | 6 | 860 | 130 | 20/ 50 |
13 | 1/2″ | 26.0 | 2 | 300 | 6 | 860 | 180 | 20/ 50 | |
16 | 5/8″ | 29.0 | 2 | 300 | 6 | 860 | 205 | 20/ 50 | |
19 | 3/4″ | 32.0 | 2 | 300 | 6 | 860 | 240 | 20/ 50 | |
22 | 7/8″ | 35.0 | 2 | 300 | 6 | 860 | 280 | 20/ 50 | |
25 | 1″ | 38.5 | 2 | 300 | 6 | 860 | 300 | 20/ 50 | |
32 | 1.1/4″ | 45.5 | 2 | 300 | 6 | 860 | 420 | 20/ 40 | |

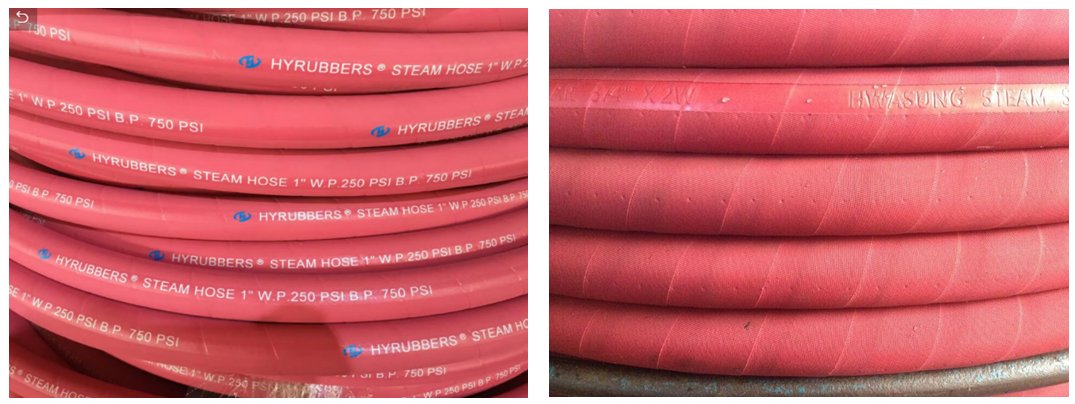

HOSE PHOTO:

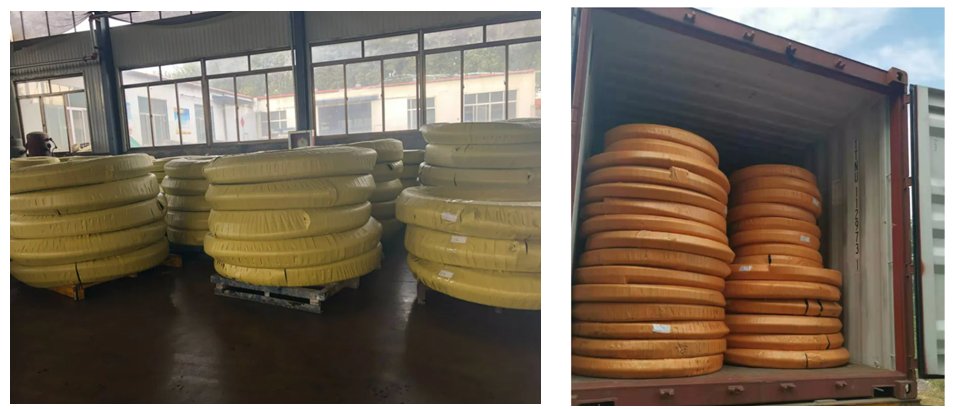

PACKING AND LOADING:
HYRUBBERS WORKSHOP:
WHY CHOOSE US?
●17+ years experience in rubber hydraulic hose and pvc hose industry.
●Main products: hydraulic hose, welding hose, oil hose, suction hose, etc.
●Located in Qingdao,China, closed with the seaport
●32 steel braiding machine, 2 sprial machine for 4 wire hoses, and 2 cotton braiding machine
●Outstanding R&D engineers team.
●OEM available.
●Consistent and well trained team.
●Experienced sales team for different markets.
●ISO9001 approved production process.
MARKET:
Based on products and services,Continuously optimize and improve enterprise management and technology.Committed to eliminating errors or defects in hose production process.
To create more value-added products for our partners Customer groups that have served already involve many countries and regions in the world.
