HYRUBBERS is a leader in complete hydraulic equipment solutions. We have stock for hydraulic pipe crimping machine and ready to ship any any time.
Crimper range: 1/8" ~ 2" IV
Standard voltage&motor: 380V / 4KW
Opening without dies: Φ124mm
Opening : ≥28mm
Opening time: ≤1.5S
Close time: ≤6S
Optional voltage & motor: 220V / 2.2KW
No. of standard die set: 10sets
Systematic pressure: 30MPa
Weight: 310kg
Noise level: ≤75dB
L x W x H (mm): 800 x 635 x 1376
HY-91C-5HOSE CRIMPER
1.Back reseting hydro-cylinder, can be easily operated.
2.Increasing the opening, and good passing performance.
3.Added with base-protective resin gasket to not damage the working surface.
4.Function:manual. semi-automatic and automatic

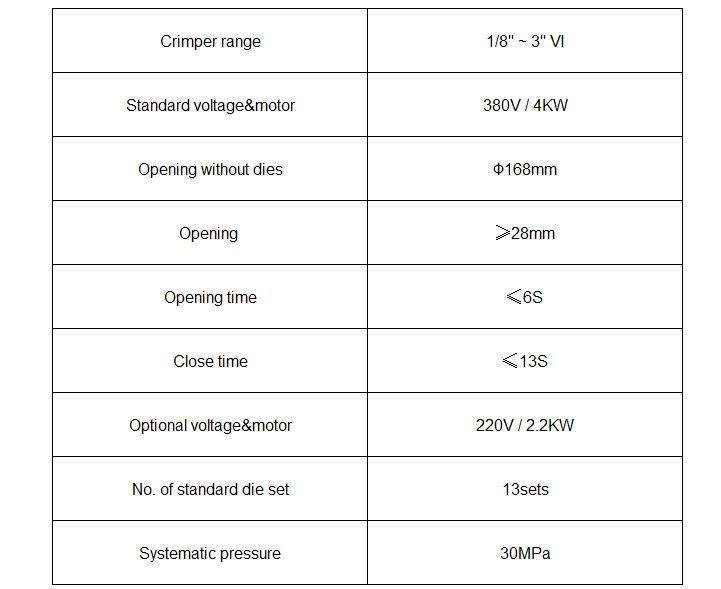

TECHNICAL DATA:
CERTIFICATE:
WHY CHOOSE US?
●17+ years experience
●Located in Qingdao,China, closed with the seaport
●Outstanding R&D engineers team.
●OEM available.
●Consistent and well trained team.
●Experienced sales team for different markets.
●ISO9001 approved production process.
DELIVERY:
HYRUBBERS built excellent transportation newt work. The machine could be delivered to clients by sea, by air, by highway transportation, to make sure the clients get the rubber hose in time.
