HYRUBBERS is a leading China manufacturer of hydraulic hoses. We have a complete chain to custom SAE 100 R5 for you.
Size: 3/16"–3”
Working pressure: 210bar–14bar
Lenght: 20m/40m/50m/100m
Weight: 0.24–3kg/m
SAE 100 R5
APPLICATION: petroleum base and water base hydraulic fluids
INNER TUBE: Oil resistant synthetic rubber
REINFORCEMENT: One steel wire braided
COVER: Oil and weather resistant synthetic rubber impregnated cotton braid
WORKING TEMPERATURE: -40℃ (-104 ℉ ) to +100℃(+212 ℉)
SPECIATION:
DN | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | MIN B.R | Weight | Length | |||
inch | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
5 | 3/16″ | 4.8 | 13.7 | 21 | 3045 | 84 | 12180 | 75 | 0.24 | 50/ 100 |
6.3 | 1/4″ | 6.4 | 15.3 | 21 | 3045 | 84 | 12180 | 85 | 0.29 | 50/ 100 |
8 | 5/16″ | 7.9 | 17.6 | 15.7 | 2276 | 62 | 8990 | 100 | 0.36 | 50/ 100 |
11 | 13/32″ | 10.3 | 20.0 | 14 | 2030 | 56 | 8120 | 115 | 0.48 | 50/ 100 |
12.5 | 1/2″ | 12.7 | 24.0 | 12.2 | 1769 | 48 | 6960 | 140 | 0.55 | 50/ 100 |
16 | 5/8″ | 15.9 | 28.0 | 10.5 | 1522 | 42 | 6090 | 165 | 0.65 | 50/ 100 |
22 | 7/8″ | 22.2 | 32.2 | 5.6 | 812 | 22 | 3090 | 185 | 0.69 | 20/40 |
29 | 1-1/8″ | 28.6 | 38.9 | 4.3 | 623 | 17.2 | 2494 | 230 | 0.84 | 20/40 |
35 | 1-3/8″ | 34.9 | 45.2 | 3.5 | 507 | 14 | 2030 | 265 | 1.03 | 20/40 |
46 | 113/16″ | 60.3 | 57.6 | 2.4 | 348 | 9.6 | 1392 | 335 | 1.26 | 20/40 |
60 | 2-3/8″ | 60.5 | 74.2 | 2.4 | 348 | 9.6 | 1392 | 610 | 2.00 | 20/40 |
76 | 3″ | 76.2 | 91.7 | 1.4 | 203 | 5.6 | 812 | 840 | 3.00 | 20/40 |
HOSE PHOTO:

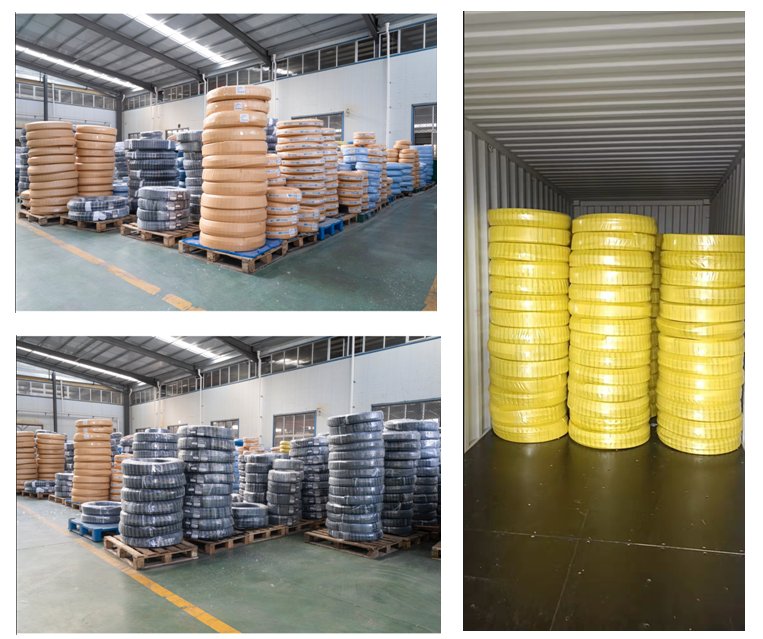

PACKING AND LOADING:
WHY CHOOSE US?
●17+ years experience in rubber hydraulic hose and pvc hose industry.
●Main products: hydraulic hose, welding hose, oil hose, suction hose, etc.
●Located in Qingdao,China, closed with the seaport
●32 steel braiding machine, 2 sprial machine for 4 wire hoses, and 2 cotton braiding machine
●Outstanding R&D engineers team.
●OEM available.
●Consistent and well trained team.
●Experienced sales team for different markets.
●ISO9001 approved production process.
MARKET:
Based on products and services,Continuously optimize and improve enterprise management and technology.Committed to eliminating errors or defects in hose production process.
To create more value-added products for our partners Customer groups that have served already involve many countries and regions in the world.
If you have any needs , please fill out the form below and we will contact you as soon as possible.
If you have any needs , please fill out the form below and we will contact you as soon as possible.
