HYRUBBERS is a professional industrial hoses manufacturers in China. We have all types, welcome to purchase SMOOTHWRAPPED COVER FUELOIL HOSE from us.
Size: 1/4"-2”
Working pressure: 20bar
Lenght: 50m/100m
Weight: 0.17–1.8kg/m
Color: blue,yellow, red, black
SMOOTH WRAPPED COVER FUEL/OIL HOSE
TUBE: Black, smooth, NBR rubber.
REINFORCEMENT: High strength synthetic yarn.
COVER: Ozone, oil resistant synthetic nitrile rubber.
APPLICATION: Softwall hose Designed for the discharge of petroleum-based products, diesel, gasoline, lubricants, fuel, with aromatic content up to 50%.
TEMPERATURE RANGE: -32°C to +82°C (-90°F to +180°F)
CHARACTERISTICS:
●Weather and abrasion resistant cover
●Flexible and less distortion
●For aromatic content up to 50%
SPECIFICATION:
ID (mm) | ID (inch) | Wall (mm) | WP (bar) | BP (bar) | Radius (mm) | Weight (kg/m) |
6 | 1/4″ | 3,5 | 20 | 60 | 23 | 0.16 |
8 | 5/16″ | 3,5 | 20 | 60 | 28 | 0.23 |
10 | 3/8″ | 3,5 | 20 | 60 | 35 | 0.26 |
13 | 1/2″ | 4,0 | 20 | 60 | 53 | 0.35 |
13 | 1/2″ | 4,5 | 20 | 60 | 58 | 0.42 |
16 | 5/8″ | 4,5 | 20 | 60 | 78 | 0.48 |
19 | 3/4″ | 5,0 | 20 | 60 | 105 | 0.60 |
25 | 1″ | 5.0 | 20 | 60 | 130 | 0.67 |
32 | 1 1/4’’ | 6.0 | 20 | 60 | 230 | 0.94 |
38 | 1 1/2’’ | 6.0 | 20 | 60 | 270 | 1.08 |
50 | 2’’ | 7.0 | 20 | 60 | 400 | 1.80 |
HOSE PHOTO:

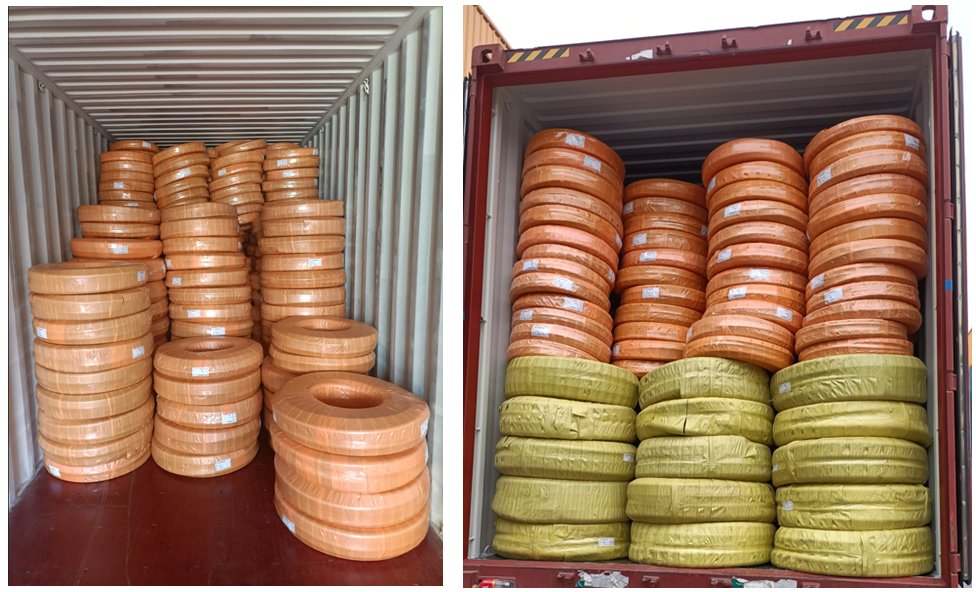

LOADING THE CONTAINER:
WHY CHOOSE US?
●17+ years experience in rubber hydraulic hose and pvc hose industry.
●Main products: hydraulic hose, welding hose, oil hose, suction hose, etc.
●Located in Qingdao,China, closed with the seaport
●32 steel braiding machine, 2 sprial machine for 4 wire hoses, and 2 cotton braiding machine
●Outstanding R&D engineers team.
●OEM available.
●Consistent and well trained team.
●Experienced sales team for different markets.
●ISO9001 approved production process.
DELIVERY:
HYRUBBERS built excellent transportation newt work. The rubber hose could be delivered to clients by sea, by air, by highway transportation, to make sure the clients get the rubber hose in time.
